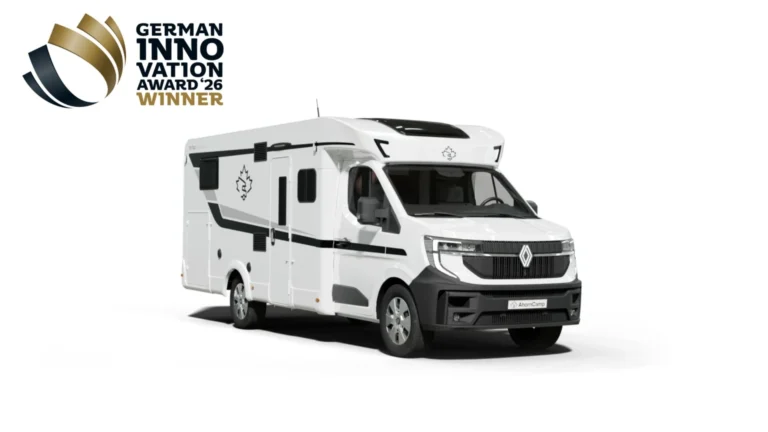

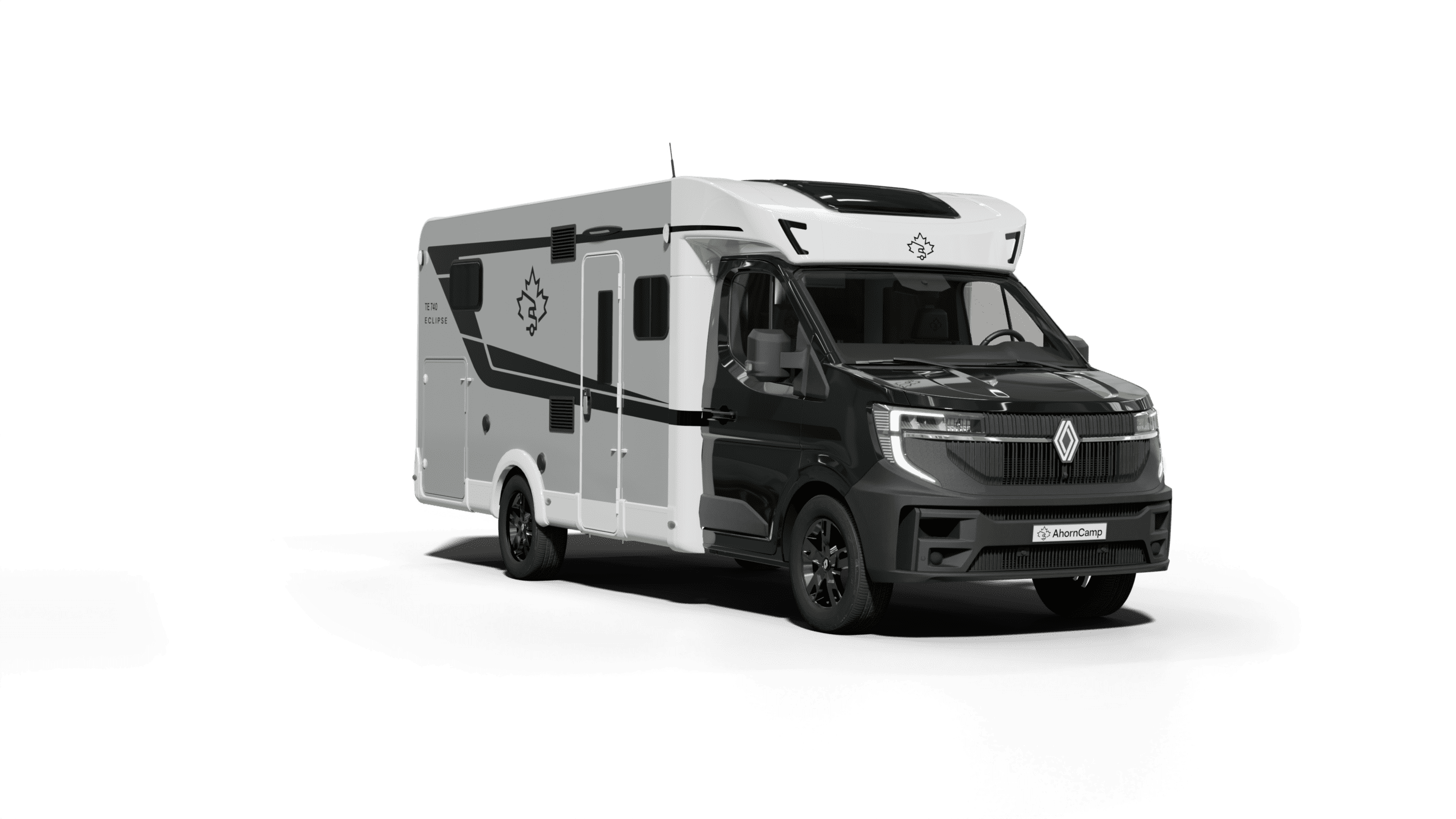

Maple Camp TE 740
TE 740 Flexibility and comfort for long journeys
The semi-integrated Ahorn Camp TE 740 offers two comfortable single beds in the rear, which can be joined to form a large sleeping area if required - ideal for restful nights on long journeys. The well thought-out layout creates a spacious living area with a comfortable seating area, fully equipped kitchen and separate bathroom with shower. Numerous storage solutions and the modern Renault Master with full GRP body and effective insulation ensure comfort and safety. If you need additional sleeping space, the TE 740 can be extended with an optional dinette bed or an electric drop-down bed above the dinette.
Vehicle data
Base price from 64.600 €
Interior view
Technical data
Chassis:Â Renault Master
kW/hp: 96/130 (S), 125/170 (O)
Gearbox: 6-speed manual gearbox
Drive:Â Front-wheel drive
Fuel tank: 80 l dieselÂ
AdBlue: 20 lÂ
Swivel seats driver's cab:Â Yes
Total length (cm): 748
Total width (cm): 232
Total height (cm): 285
Standing height: 210
Mass in running order (approx. kg): 2917 (3063 - 2771)
Permissible total weight (kg): 3500 (S) 4000 (O)
Permissible trailer load braked/unbraked (kg): 2000 / 750
Floor / wall / roof thickness (mm): 42 / 34 / 34
Total seats: Up to 4
Bed dimensions rear W x L (cm): R: 77x201, L: 77x207
Bed dimensions dinette W x L (cm): 80x200 (O)
Bed dimensions electric drop-down bed above dinette W x L (cm): 140x200 (O)
Sleeping places: 2 (S) + 3 (O)
Fresh water tank: 90 l + 20
Waste water tank: 80 lÂ
WC Tank: Thetford C223 18 l
Absorption refrigerator: 136 l Thetford
Number of cooking zones:Â 2
Body battery: AGM 95 Ah ( P )
Sockets 12 V: 1Â
230 V sockets: 3 (S) +2 (O)
Charging ports USB+USB-C combination: 4
Heating: Truma Combi 4 Gas, 4kW
Renault Master, 130 hp, 350 Nm, Turbo Diesel, 2.0 L dCi
Common rail, 6-speed manual gearbox
Eco mode with start & stop
Steel rims 16 inch
Driver and front passenger airbag
Electric windows, electrically adjustable and heated side mirrors
Central locking cab
On-board computer and eCall emergency button
Height-adjustable seat belts for driver and front passenger
Radio key for locking and unlocking, dipped headlights and cockpit lighting
Height and depth-adjustable multifunction steering wheel
Swivel cab seats with 2 height-adjustable armrests per seat (depending on model)
Blackout curtain in the cab
Radio roof antenna for improved reception and DAB
EPS thermal insulation
GRP roof, outer skin and underbody
Gas compartment for 2x 11 kg propane gas cylinders
Garage illuminated, heated and lockable
6 adjustable lashing eyes incl. 2 rails for securing the load in the garage
XL superstructure door (60 cm) with low entrance and window (cannot be opened)
Sawiko frame extension
LED rear lights incl. 3rd brake light
Aerodynamic roof scoop and ABS connection between living area and cab
External power connection and water filler neck
Outdoor light
Fabric design "Moon" light gray or "Dune" faux leather beige (optional)
LED ambient lighting concept
Window curtains in living room design
Window cladding frames in living room design in kitchen and dinette
Designer panels in the bedroom and living area
Mirror in living area (depending on model)
Adjustable table top in dinette
Dinette seat can be extended with T-piece incl. seat cushion (depending on model L-dinette)
Entry aid / grab rail in the entrance area
Removable dinette cushion (with zipper)
Removable headrests
Dometic framed window with Remis blackout blinds and fly screen
Heki roof window from Dometic with blackout and mosquito net
Slatted frames for the beds incl. fall-out protection / net
Comfortable ergonomic mattresses from Cowan, breathable with stretch cover, machine washable
Pull-out clothes rail in closet under single bed (depending on model)
2- to 3-burner hob from CAN with piezo ignition
Thetford Absorber automatic refrigerator
Soft-close kitchen drawers with cutlery compartment
Soft-close hinges on wall units with pushlock
Thetford toilet with removable cassette
Roof hatch for ventilation
Shower, mirror, washbasin and cupboards
Truma Combi C4 Gas with air vents in the living area, cab, garage and bathroom
Truma CP+ Digital heating control panel with time control
Fresh water tank inside, with electric submersible pump
Drain pipes with siphon and waste water tank with external ventilation to prevent odors
Control panel from CBE
Adjustable reading lamps with USB sockets
Automatic battery charger 22 A
FI (main fuse box) easily accessible
Easily accessible gas shut-off valves
Smart home preparation
(S) = Standard
(O) = Optionally bookable
(P) = Package
Highlights
TE 740 Your flexible travel companion with maximum comfort
The TE 740 is the ideal choice for travelers who value flexibility in the sleeping area and generous living comfort. The single beds allow easy access without climbing and offer additional space for luggage thanks to the storage space underneath. The longitudinal arrangement allows good use of space and an airy feeling of space, which is not a matter of course in this vehicle class.
The living area is brightly decorated, with comfortable cushions and a table that is also suitable for social evenings. In the kitchen you will find plenty of work space and high-quality appliances so that you can cook fresh meals even when traveling. The bathroom with separate shower offers privacy and comfort, regardless of the campsite infrastructure.
The robust construction with full GRP body protects the vehicle over the long term, while the Renault Master base ensures reliability and a relaxed journey. If you are looking for a motorhome that combines comfort, flexibility and lasting value, the TE 740 will convince you
