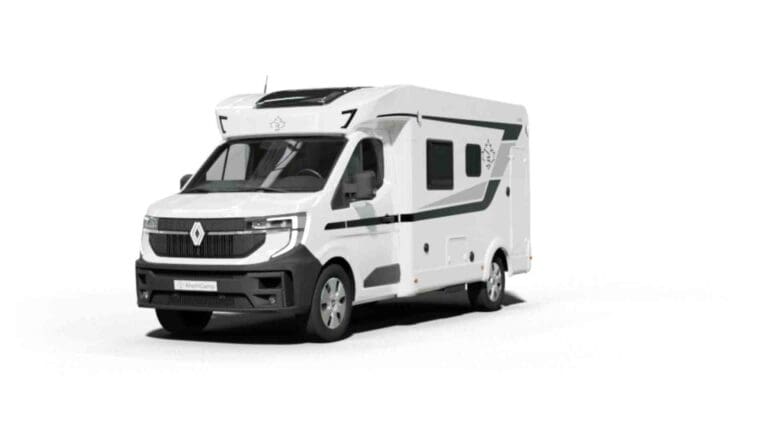

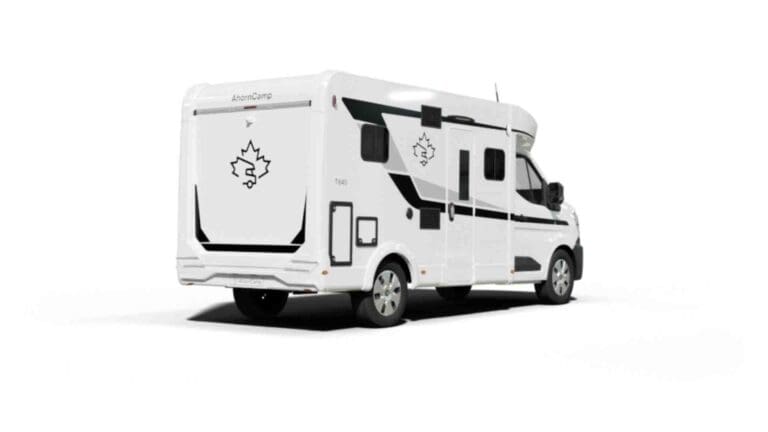

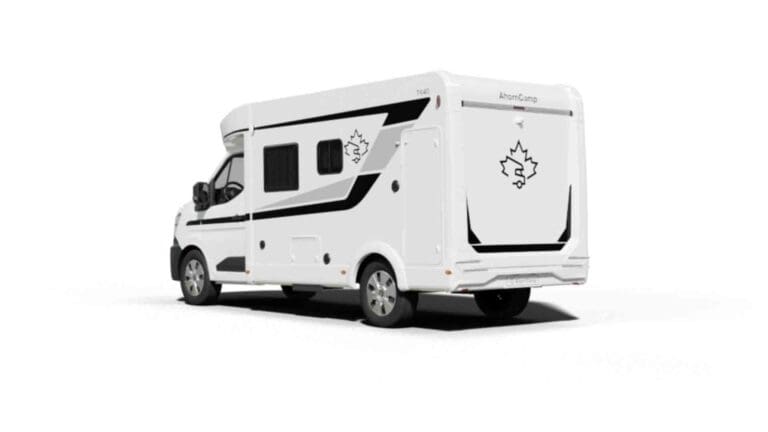

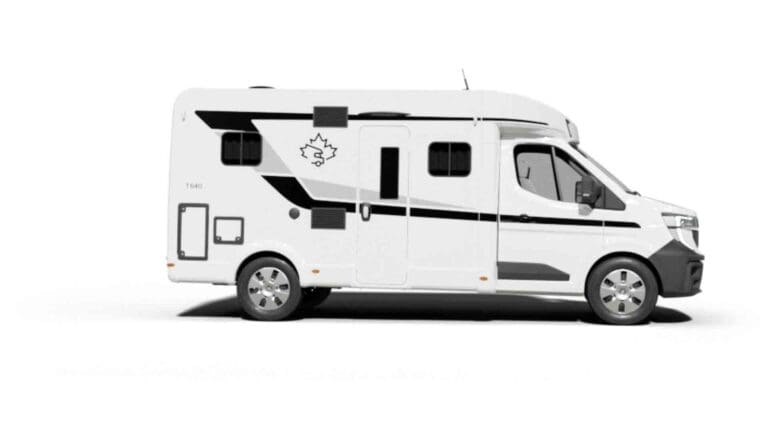

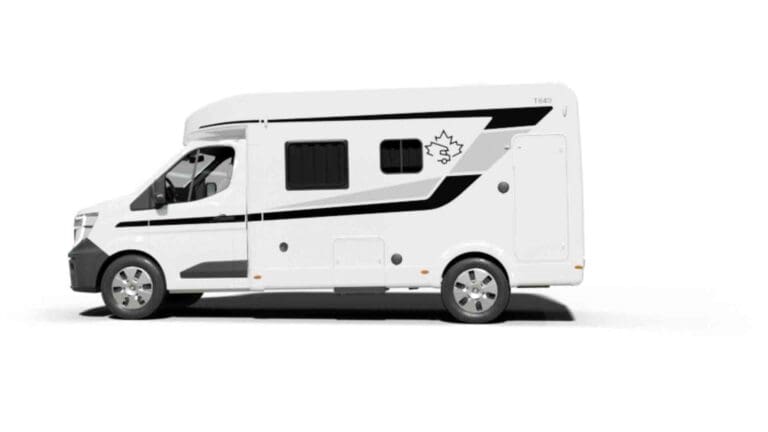

Maple Camp T 640

T 640 large storage space, maximum flexibility

The semi-integrated Ahorn Camp T 640 is ideal for anyone who takes a lot of equipment with them and at the same time values an open feeling of space. The standard electric drop-down bed above the dinette disappears into the ceiling during the day to save space, creating plenty of freedom of movement in the living area. The space gained has been used for a spacious rear bathroom with extra cupboards and storage space. For additional sleeping comfort, the T 640 can be optionally equipped with a dinette bed.

Vehicle data

	Length: Width: Height:	649 cm 232 cm 285 cm
	Seats: Sleeping places:	Up to 4 2 (S) 3 (O)*
	Permissible total mass:	from 3,500 kg

*Optional with dinette bed

Base price from 59.500 €

Interior view

Technical data

Chassis: Renault Master

kW/hp: 96/130 (S), 125/170 (O)

Gearbox: 6-speed manual gearbox (S), 9-speed automatic torque converter (O)

Drive: Front-wheel drive

Fuel tank: 80 l diesel

AdBlue: 20 l

Swivel seats driver's cab: Yes

Total length (cm): 649

Total width (cm): 232

Total height (cm): 284

Standing height (cm): 210

Mass in running order (approx. kg): 2957 (3105 - 2871)

Permissible total weight (kg): 3500 (S) 4000 (O)

Permissible trailer load braked/unbraked (kg): 2000 / 750

Floor / wall / roof thickness (mm): 42 / 34 / 34

Total seats: Up to 4 (S)

Bed dimensions electric fold-down bed above dinette (L x W) (cm): 200x140

Bed dimensions Dinett bed L x W (cm): 195x80 (O)

Sleeping places: 2 (S) + 1 (O)

Fresh water tank: 90 l

Waste water tank: 80 l

WC Tank: Thetford C223 18 l

Absorption refrigerator: 136 l Thetford

Number of cooking zones: 2

Body battery: AGM 95 Ah ( P )

Sockets 12 V: 1

230 V sockets: 2 (S) +2 (O)

Charging ports USB+USB-C combination: 2

Heating: Truma Combi 4 Gas, 4kW

Renault Master, 130 hp, 350 Nm, turbo diesel, dCi 130

Common rail, 6-speed manual gearbox

Eco mode with start & stop

Steel rims 16 inch

Driver and front passenger airbag

Electric windows, electrically adjustable and heated side mirrors

Central locking cab

On-board computer and eCall emergency button

Height-adjustable seat belts for driver and front passenger

Radio key for locking and unlocking, dipped headlights and cockpit lighting

Height and depth-adjustable multifunction steering wheel

Swivel cab seats with 2 height-adjustable armrests per seat (depending on model)

Blackout curtain in the cab

Radio roof antenna for improved reception and DAB

EPS thermal insulation

GRP roof, outer skin and underbody

Gas compartment for 2x 11 kg propane gas cylinders

Garage illuminated, heated and lockable

6 adjustable lashing eyes incl. 2 rails for securing the load in the garage

XL superstructure door (60 cm) with low entrance and window (cannot be opened)

Sawiko frame extension

LED rear lights incl. 3rd brake light

Aerodynamic roof scoop and ABS connection between living area and cab

External power connection and water filler neck

Outdoor light

Fabric design "Moon" light gray or "Dune" faux leather beige (optional)

LED ambient lighting concept

Window curtains in living room design

Window cladding frames in living room design in kitchen and dinette

Designer panels in the bedroom and living area

Mirror in living area (depending on model)

Adjustable table top in dinette

Dinette seat can be extended with T-piece incl. seat cushion (depending on model L-dinette)

Entry aid / grab rail in the entrance area

Removable dinette cushion (with zipper)

Removable headrests

Dometic framed window with Remis blackout blinds and fly screen

Heki roof window from Dometic with blackout and mosquito net

Slatted frames for the beds incl. fall-out protection / net

Comfortable ergonomic mattresses from Cowan, breathable with stretch cover, machine washable

Pull-out clothes rail in closet under single bed (depending on model)

2- to 3-burner hob from CAN with piezo ignition

Thetford Absorber automatic refrigerator

Soft-close kitchen drawers with cutlery compartment

Soft-close hinges on wall units with pushlock

Thetford toilet with removable cassette

Roof hatch for ventilation

Shower, mirror, washbasin and cupboards

Truma Combi C4 Gas with air vents in the living area, cab, garage and bathroom

Truma CP+ Digital heating control panel with time control

Fresh water tank inside, with electric submersible pump

Drain pipes with siphon and waste water tank with external ventilation to prevent odors

Control panel from CBE

Adjustable reading lamps with USB sockets

Automatic battery charger 22 A

FI (main fuse box) easily accessible

Easily accessible gas shut-off valves

Smart home preparation

(S) = Standard
(O) = Optionally bookable
(P) = Package

Der T 640 – unser Raumwunder

Mit serienmäßigem Hubbett

Das vollelektrische Hubbett lässt sich mühelos nach oben fahren und schafft so zusätzlichen Raum für einen großzügigen Wohnbereich sowie praktischen Stauraum.

Durch das integrierte Dachfenster können Sie den Blick auf den Sternenhimmel genießen, oder Sie dunkeln den Schlafbereich bei Bedarf bequem ab.

Generous sense of space

As soon as you enter the vehicle, the open, spacious living area catches your eye: modern design, warm materials, and a surprisingly large amount of space.

A real highlight is the large rear bathroom, which offers significantly more freedom of movement than one would expect in this vehicle class. Everything is well thought out, high-quality workmanship, and makes you want to drive off immediately and feel at home on the road.
