Maple Camp A 690
A 690 Your space miracle for family and adventure

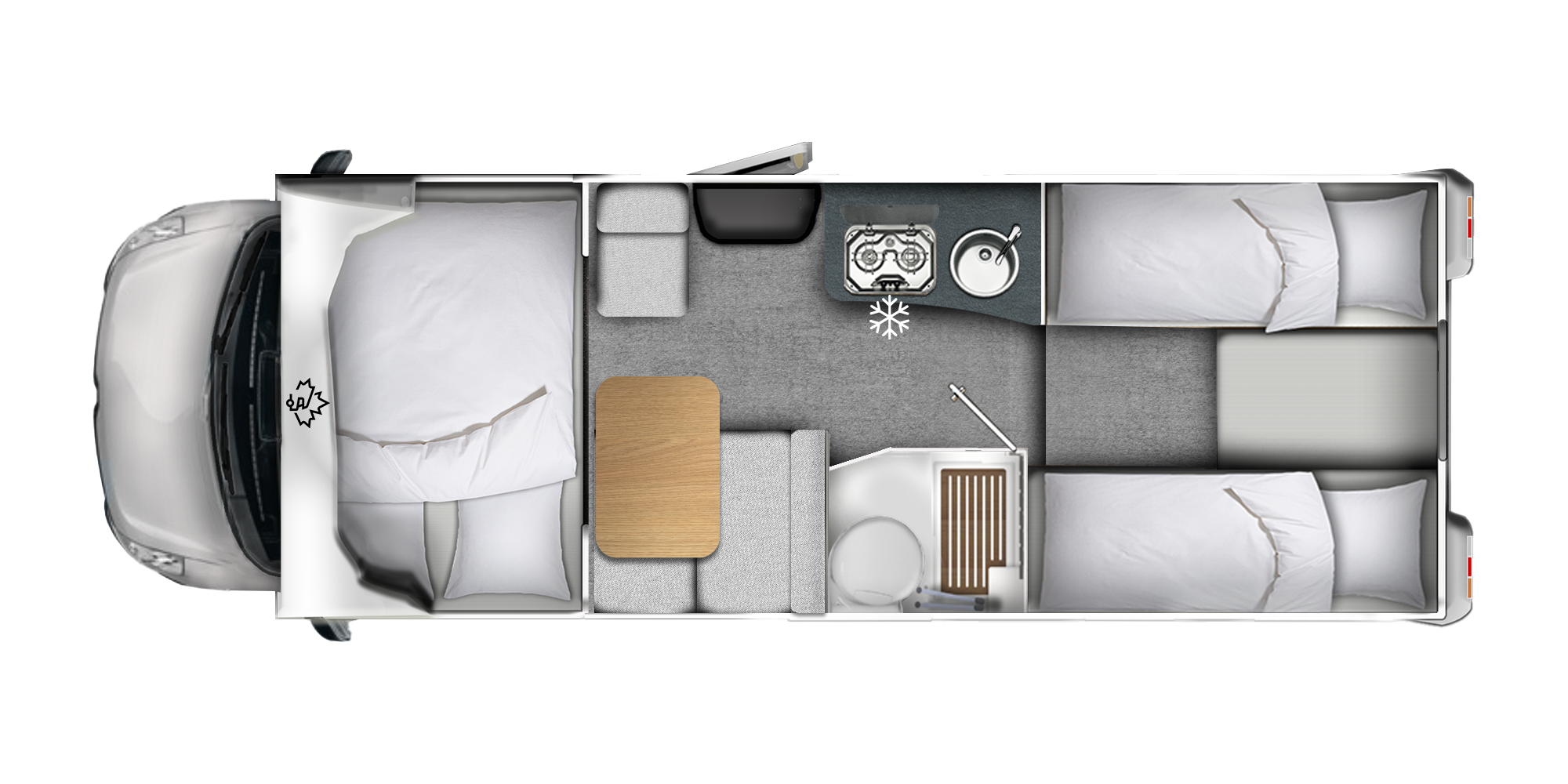

The alcove A 690 is the ideal motorhome for families and anyone who appreciates plenty of space. There is a spacious double bed in the alcove above the driver's cabin and two comfortable single beds in the rear - so everyone can find a place to retreat to. Clever storage space solutions, a fully equipped kitchen and a practical bathroom ensure relaxed travel. Ergonomic mattresses with slatted frames and charging sockets on the bed offer additional comfort. If you need more sleeping space, the A 690 can be extended with an optional dinette bed. With a full GRP body, improved insulation and modern Renault Master technology, you can travel safely and comfortably at any time of year.
Vehicle data
Base price from 62.500 €
Deal of the Month
Unsere beliebtesten Familienmodelle A 690 und A 720 gibt es im Mai mit 6.000 € Preisvorteil und umfangreicher und kindergerechten Ausstattung. Kein Warten, kein Umbau, kein Saisonstress
69.984 €
76.070 €
Price incl. VAT. While stocks last. Cannot be combined with other offers.
Interior view
Technical data
Chassis:Â Renault Master
kW(PS): 96 (130) (S) / 125 (170) (O)
Gearbox: 6-speed manual gearbox
Drive:Â Front-wheel drive
Fuel tank: 80 l diesel
AdBlue: 20 l
Swivel seats driver's cab:Â Yes
Total length (cm): 699
Total width (cm): 232
Total height (cm): 314
Standing height (cm): 210
Mass in running order (approx. kg): 2981 (3130 - 2832)
Permissible total mass (kg):Â 3500 (S) 4000 (O)
Permissible trailer load braked / unbraked (kg): 2000 / 750
Floor / wall / roof thickness (mm): 42 / 34 / 34
Total seats: up to 4 (S) +1 (O)
Bed dimensions rear L x W (cm): R: 199x80, L: 207x80
Bed dimensions alcove L x W (cm): 211x147
Bed dimensions dinette L x W (cm): 200x80 (O)
Sleeping places: 4 (S) +1 (O)
Fresh water tank: 90 + 20 l
Waste water tank: 80 l
WC Tank: Thetford C223 18 l
Absorption refrigerator: 89 l Thetford
Number of cooking zones:Â 2
Body battery: 95 Ah ( P )
Sockets 12 V: 1
220 V sockets: 2 (S) +2 (O)
Charging ports USB+USB-C combination: 3
Heating: Truma Combi 4 Gas, 4 kW
Renault Master, 130 hp, 350 Nm, Turbo Diesel, 2.0 L dCi Common Rail
6-speed manual gearbox
Eco mode with start & stop
Steel rims 16 inch
Driver and front passenger airbag
Electric windows, electrically adjustable and heated side mirrors
Central locking cab
On-board computer and eCall emergency button
Height-adjustable seat belts for driver and front passenger
Radio key for locking and unlocking, dipped headlights and cockpit lighting
Height and depth-adjustable multifunction steering wheel
Swivel cab seats with 2 height-adjustable armrests per seat (depending on model)
Blackout curtain in the cab
Radio roof antenna for improved reception and DAB
EPS thermal insulation
GRP roof, outer skin and underbody
Gas compartment for 2x 11 kg propane gas cylinders
Garage illuminated, heated and lockable
6 adjustable lashing eyes incl. 2 rails for securing the load in the garage
XL superstructure door (60 cm) with low entrance and window (cannot be opened)
Sawiko frame extension
LED rear lights incl. 3rd brake light
Aerodynamic roof scoop and ABS connection between living area and cab
External power connection and water filler neck
Outdoor light
Fabric design "Moon" light gray or "Dune" faux leather beige (optional)
LED ambient lighting concept
Window curtains in living room design
Window cladding frames in living room design in kitchen and dinette
Designer panels in the bedroom and living area
Mirror in living area (depending on model)
Adjustable table top in dinette
Dinette seat can be extended with T-piece incl. seat cushion (depending on model L-dinette)
Entry aid / grab rail in the entrance area
Removable dinette cushion (with zipper)
Removable headrests
Dometic framed window with Remis blackout blinds and fly screen
Heki roof window from Dometic with blackout and mosquito net
Slatted frames for the beds incl. fall-out protection / net
Comfortable ergonomic mattresses from Cowan, breathable with stretch cover, machine washable
Pull-out clothes rail in closet under single bed (depending on model)
2- to 3-burner hob from CAN with piezo ignition
Thetford Absorber automatic refrigerator
Soft-close kitchen drawers with cutlery compartment
Soft-close hinges on wall units with pushlock
Thetford toilet with removable cassette
Roof hatch for ventilation
Shower, mirror, washbasin and cupboards
Truma Combi C4 Gas with air vents in the living area, cab, garage and bathroom
Truma CP+ Digital heating control panel with time control
Fresh water tank inside, with electric submersible pump
Drain pipes with siphon and waste water tank with external ventilation to prevent odors

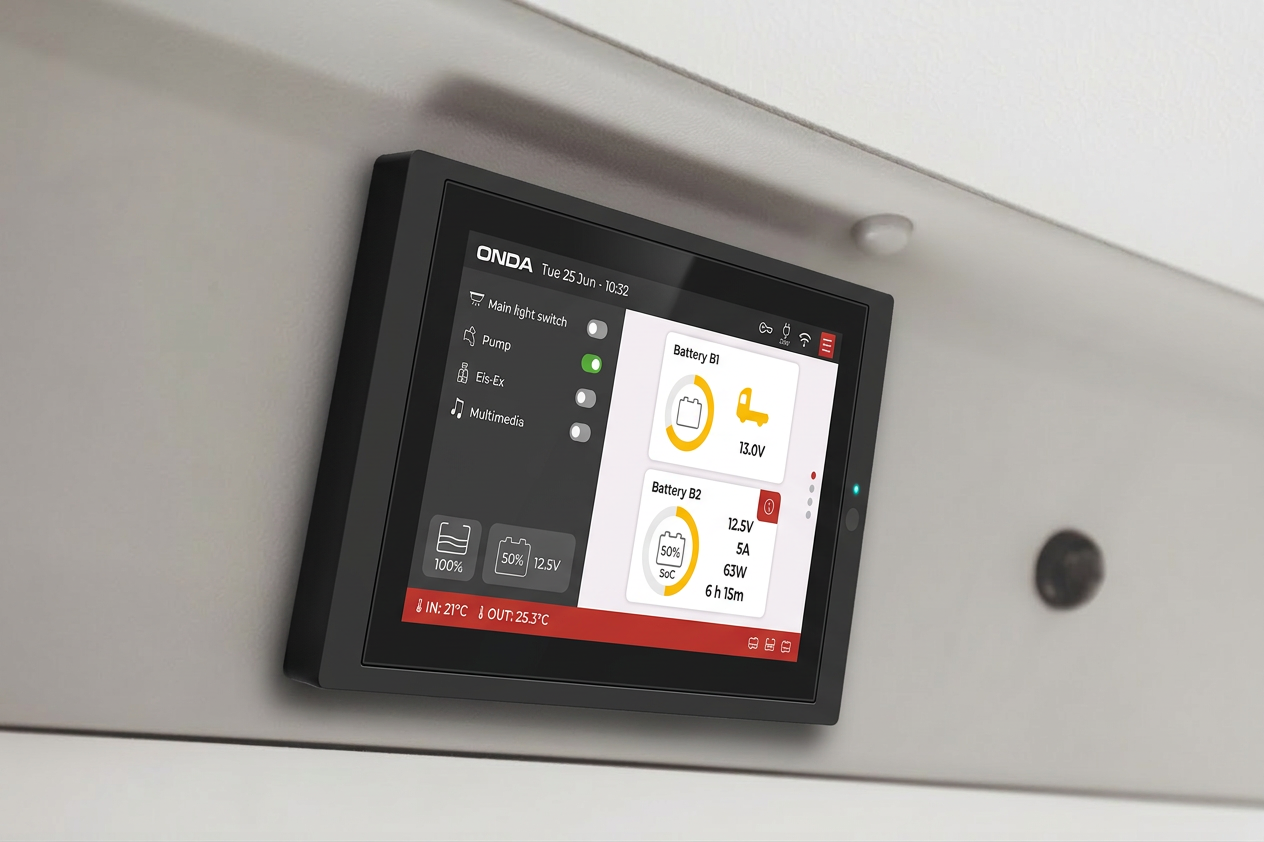

Control panel from CBE
Adjustable reading lamps with USB sockets
Automatic battery charger 22 A
FI (main fuse box) easily accessible
Easily accessible gas shut-off valves
Smart home preparation
(S) = Standard
(O) = Optionally bookable
(P) = Package
Highlights
A 690 - Travel modern, arrive in comfort
The Ahorn Camp A 690 is not just a camper van - it is your mobile home for adventures big and small. Its robust construction with a full GRP body makes it resistant to hail, weather and wear and tear, so you can enjoy it for years to come. The proven Renault Master technology stands for reliability, strong performance and a safe driving experience - even on long journeys.
Inside, the well thought-out arrangement of living and sleeping areas ensures a pleasant separation between communal moments and relaxing privacy. The spacious kitchen allows you to prepare real meals, and the comfortable sanitary area makes you independent of the campsite infrastructure.
Families and groups in particular benefit from the flexibility of the A 690: sufficient seating and sleeping space, huge storage space for luggage and sports equipment and insulation that also makes winter travel comfortable. Convince yourself of its versatility - arrange your personal consultation now or request your individual offer. Your next adventure awaits.
