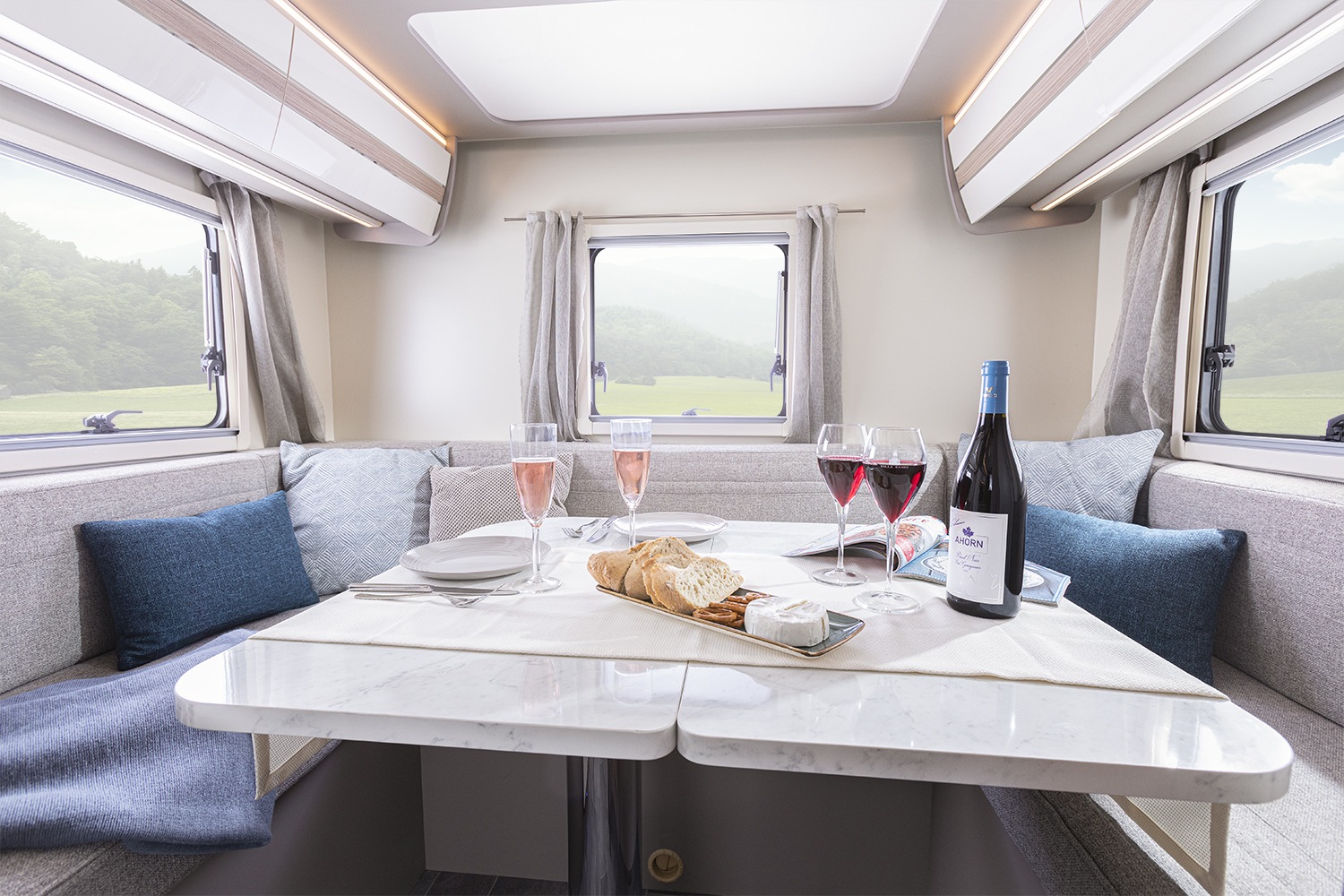

With the round seating group in the rear of the Canada TU, there are no limits to sociable camping evenings. The dining table with its elegant marble look can be folded out. In addition to the dinette in the front area, the TU offers cozy seating in the inviting rear lounge, for a total of 10 seats. The comfortable and wide upholstery offers pleasant seating comfort. In the evening, the electrically height-adjustable fold-down bed above the rear lounge serves as a cozy double bed. An additional double pull-down bed can be ordered as an option above the front dinette.
4 / 2(4)
Seats / Sleeping places
6.97 x 2.34 x 2.96
Length x width x height (m)
1,22 x 2,00
Bed size fold-down bed (m)
1,22 x 2,00
Bed size fold-down bed (m)

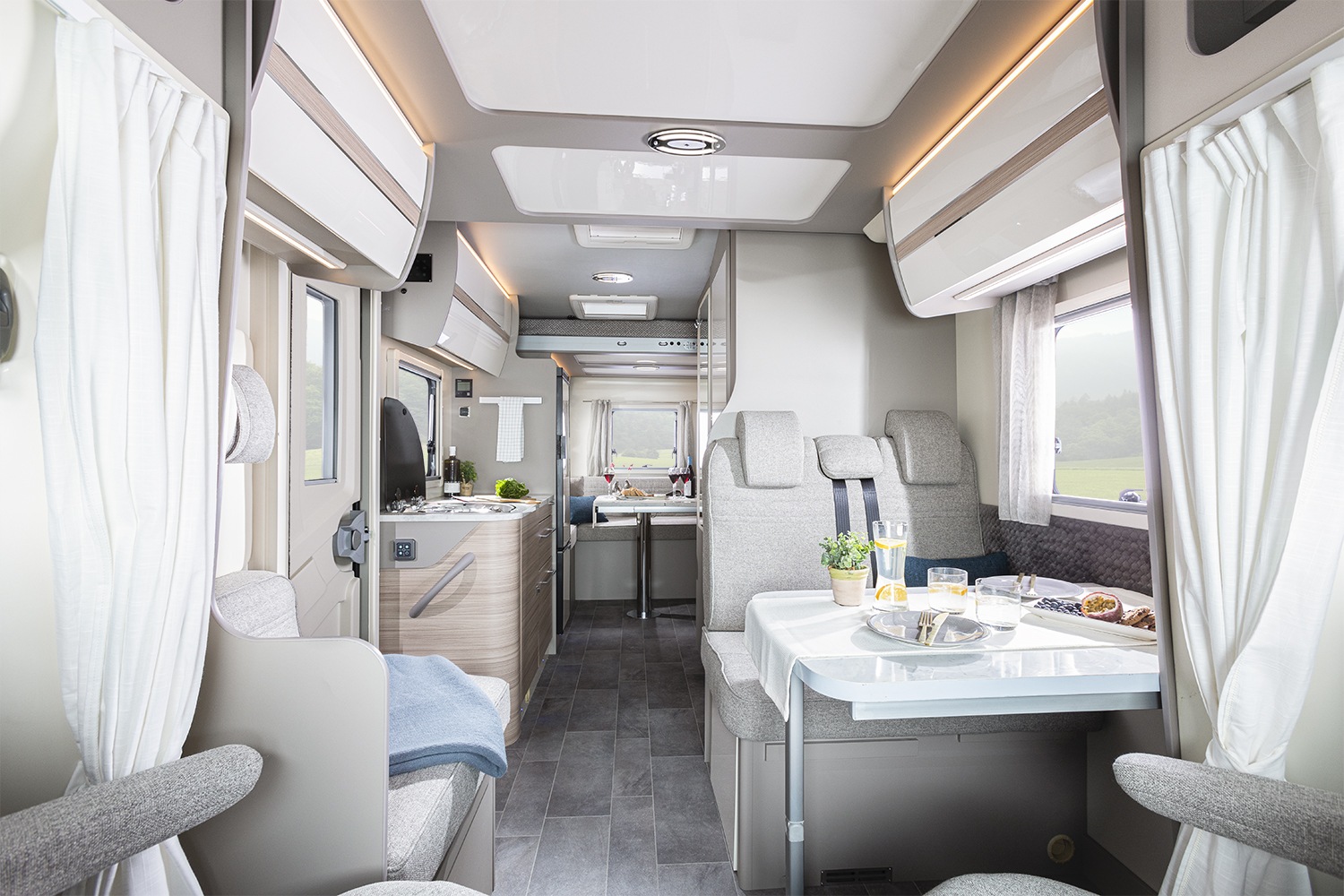

INSIDE VIEW
THE MOST IMPORTANT ADVANTAGES
Swivel driver's seats
Spacious bathroom
Large round seating area
Two lifting beds
Under 7 meters
Spacious kitchen
HIGHLIGHTS
The new standard seat cushions are durable and offer extra comfort.
The optional panoramic roof provides plenty of direct light and is perfect for stargazing in the evening.

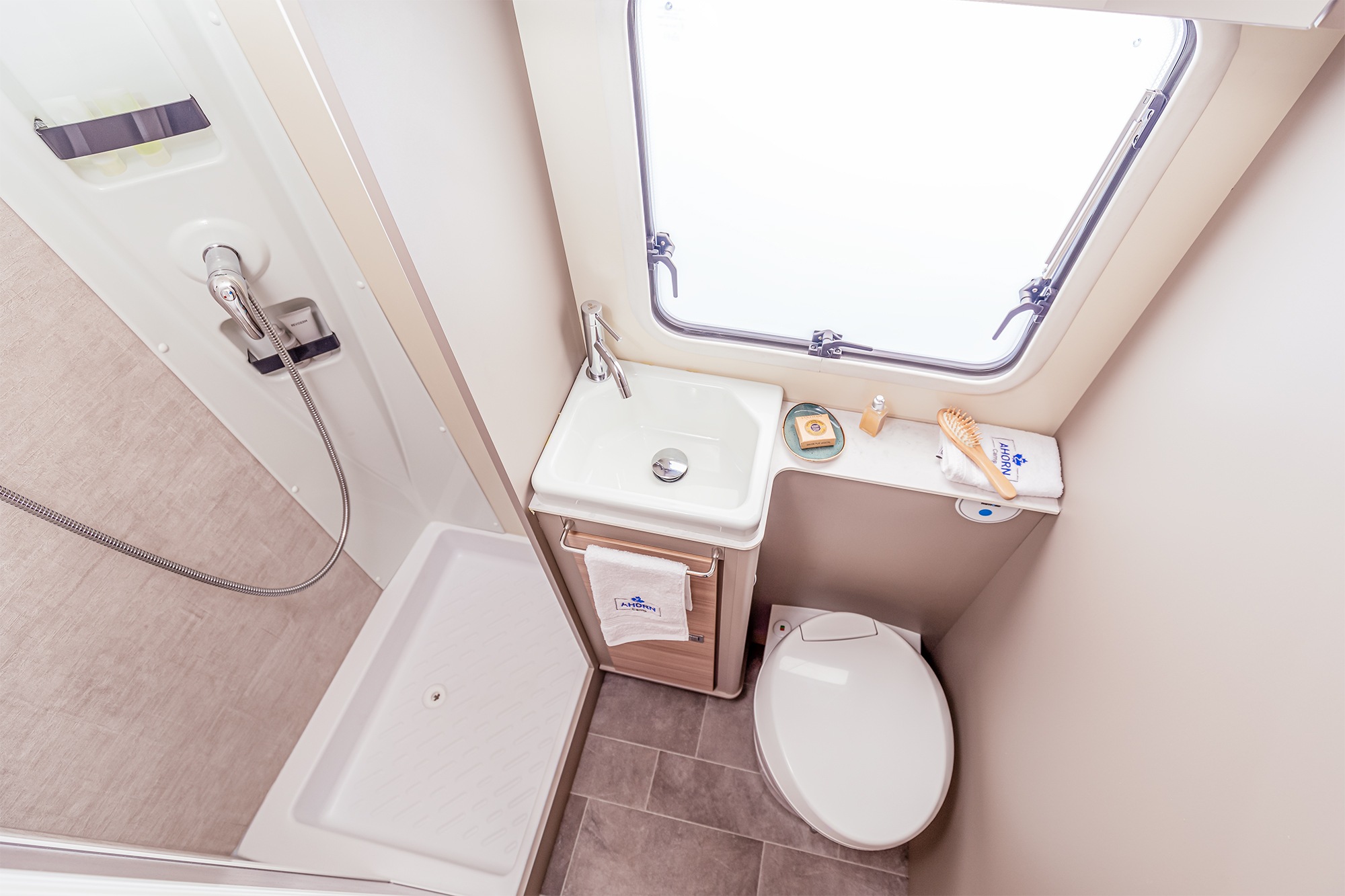

The spacious bathroom offers an extra shower cubicle with partition for more privacy.
TECHNICAL DATA
ChassisRenault Master
Motorization: 2.3 dCi Bi-Turbo - Euro 6d incl. Start & Stop
KW/PS: 107 – 145
Gearbox: 6 + R
Drive: Front-wheel drive
Wheelbase (mm): 4332
Fuel tank: 80 l diesel
AdBlue tank: 20 l AdBlue
Swivel seats driver's cab: Yes
Dimensions and weights
Total length (mm): 6969
Overall width - inside width (mm): 2340 – 2200
Total height - internal height (mm): 2960- 1995
Mass in running order (approx. kg): 3002
Permissible total weight (kg): 3500
Permissible trailer load braked (kg): 2000
Floor / wall / roof thickness (mm): 41 / 30 / 30
Total seats: 4
Garage door H x W (mm): 470 x 650
Bed dimensions drop-down bed W x L (mm): 1215 x 2000
Optional bed dimensions drop-down bed W x L (mm): 1215 x 2000
Sleeping places: 2 (4)
Tanks
Fresh water tank: 20 + 65 l
Waste water tank: 120 l
WC Tank: 17 l
Equipment
Gas cylinder container: 2 x 11 kg
Refrigerator: 89 l
Number of cooking zones: 3
Surface-mounted batteryAh 80
Sockets 12 V: 1
230 V sockets: 2
USB sockets: 3
Slatted frame: Yes
Shower door: Yes
Heating: Truma Combi C4
Boiler: 8 l - Truma Combi C4
STANDARD EQUIPMENT
Renault Master 3.5 t - 2.3dci - 145 hp - Euro 6d Final incl. Start & Stop
Exterior color beige, cab color white
Flat-floor chassis
6-speed manual gearbox
Eco mode - fuel-saving mode
80 l fuel tank
20 l AdBlue tank
16 inch original wheel trims
LED daytime running lights
Light & rain sensor
Driver airbag
Cup holder driver and front passenger seat
Summer tires Continental 225/65 R16 CP
Glove compartment
Large shelf above dashboard
Sun visors
Additional storage compartments above sun visors
2 x 12 V (cigarette lighter) sockets in the cab
Manually dimming rear-view mirror
Tire repair kit incl. tow hook
Immobilizer
Central locking cab
Structure
State-of-the-art exterior design with LED rear lights
Garage load capacity up to 200 kg (please note axle loads)
40 x 40 Heki transparent roof hatches from Dometic incl. blackout blind and fly screen
Blum hinges (soft-close)
Tecnoform furniture construction (robust, high quality)
Drawers with locking mechanism
Access bracket
Room separation by door
Polyvision frame windows (no wind resistance, burglar-proof, double-glazed)
Can 3 flame stove with piezo ignition & glass cover
Recessed cooktop with overflow
Thetford automatic refrigerator with integrated freezer compartment
Thetford winter cover for refrigerator grille
Full GRP superstructure incl. GRP lightweight floor
Full LED lighting incl. ambient lighting
LED lighting can also be selected individually via touch function
Security quick-release fasteners on garage doors
Shower door
Wardrobe with clothes rail
Thetford toilet
Truma 4c Combi gas heater 4 kW gas heater incl. hot water boiler
Truma CP+ digital control unit incl. timer / timer switch iNet ready
Garage / trunk
Lashing eyes in garage / trunk
Control panel for all on-board electronics with touchscreen
High-quality sink mixer from Argo
Recessed sink
Mirror cabinet in bathroom
Mirror in the living room
Faux leather decorative element with coat hooks
Towel rail in bathroom and sink
Gas cylinder compartment for 2 x 11 kg
Fly screens & blackout on all windows and superstructure doors
Electric step
Gas crash sensor incl. rupture protection hose
Frost guard
Separate battery compartment for body battery, charger & fuse box
Curtain in the cab
Eco-leather seat covers in the living area
High-quality cold foam mattresses
2 reading lamps in the rear bed sleeping area incl. USB charging function
Freely adjustable & lowerable table
85 l fresh water tank
120 l waste water tank
2 x 230 V sockets in the living room
3 x USB charging sockets in the living area
1 x 12 V socket in the living room
SPECIAL EQUIPMENT AND ACCESSORIES
*These pictures are examples. Colors and patterns may vary.
