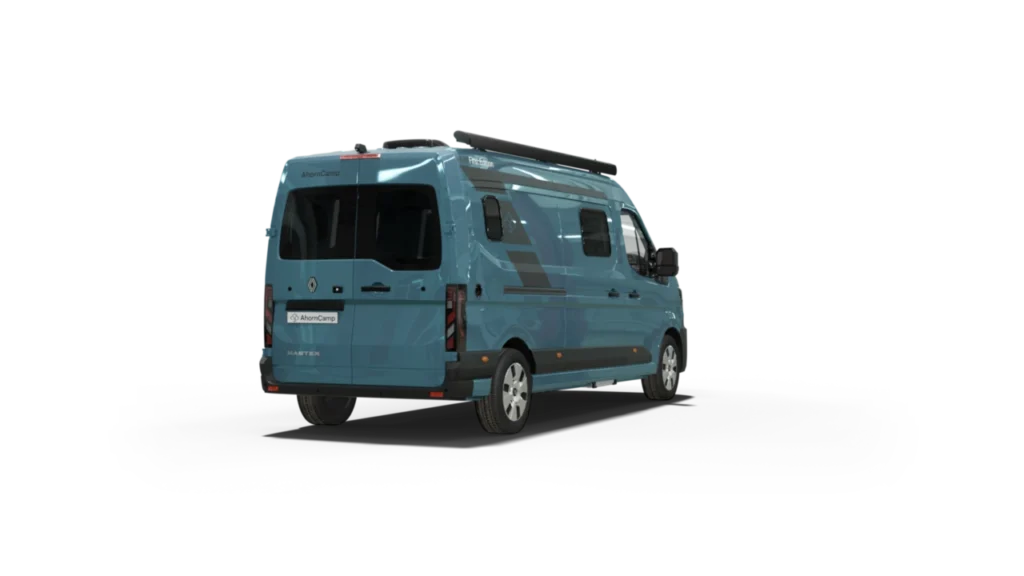

Maple Camp Van 630
More space for freedom: the new Van 630
With its two single beds in the rear, the CV 630 campervan offers plenty of comfort and freedom of movement - ideal for restful nights on the road. Thanks to its compact dimensions, it remains maneuverable and suitable for everyday use, while modern equipment, high-quality materials and well thought-out storage space solutions ensure a real travel feeling. Whether it's a weekend trip or a longer tour: with a kitchen, bathroom and comfortable seating area, everything you need to be independent on the road is on board. The CV 630 can also be extended with an optional dinette bed on request.
Vehicle data
* Optional with dinette bed
Base price from 54.500 €
Interior view
Technical data
Chassis:Â Renault Master
Motorization: dCi 130
kW(PS): 96/130 (S), 110/150 (O), 125/170 (O)
Gearbox: 6-speed manual transmission, 9-speed automatic transmission (O)
Drive:Â Front-wheel drive
Fuel tank: 80 l diesel
AdBlue: 20 l
Swivel seats driver's cab:Â Yes
Total length (cm): 631
Total width (cm): 208
Total height outside / inside (cm): 260 / 187
Mass in running order (approx. kg): 2920 (3066 - 2774)
Permissible total mass (kg): 3500 (S) - 4000 (O)
Permissible trailer load braked / unbraked (kg): 2.000 / 750
Total seats: up to 4
Rear bed dimensions (W x L) L / R (cm): 198x74 / 185x74
Bed dimensions dinette (W x L) (cm): 167x80 (O)
Sleeping places: 2 (S) +1 (O)Â
Fresh water tank: 80 + 20 l
Waste water tank: 80 lÂ
WC: Thetford 18 l
 Compressor refrigerator: 70 l Dometic
Number of cooking zones:Â 2
Body battery: AGM 95 Ah ( P )
Sockets 12 V - 230 V: 1 - 2 (S) +2 (O)
Charging ports USB+USB-C combination: 3
Heating: Truma Combi C4 Gas, 4 kW
Solar system (O):Â
Option 1: 1x 95 W
Option 2: 1x 95 W + 1x 75 W
Renault Master, 130 hp, 350 Nm, turbo diesel, 2.0L dCi Common Rail
Eco mode with start & stop
Steel rims 16"
6-speed manual gearbox
Driver and front passenger airbag
Electric windows, electrically adjustable and heated side mirrors
Central locking cab
On-board computer and eCall emergency button
Height-adjustable seat belts for driver and front passenger
Radio key (unlocking & locking, dipped headlights + cockpit lighting)
Height and depth-adjustable multifunction steering wheel
Swivel cab seats with height-adjustable armrests (2 armrests per seat)
Blackout curtain in the cab
Radio roof antenna for improved reception and DAB
PE thermal insulation
Gas compartment for 2 x 11 KG propane gas cylinders
 Aerodynamic body design: approx. 20 % lower cd value compared to predecessor
 External power connection and water filler neck
LED ambient lighting concept
 Designer panels in the bedroom and living area
Removable table with rotating extension
 Removable headrests
Dometic framed window with Remis blackout blinds and fly screen
Heki roof window from Dometic with blackout and mosquito net
 Windows in rear doors incl. blackout
Robust / stable slatted frames for the beds
Comfortable Ergonomy mattresses from Cowan, breathable with stretch cover, machine washable
 Folding rear beds for easy loading of bulky luggage
Removable charging protection flap
2 -flame hob from CAN with piezo ignition
Dometic compressor refrigerator incl. freezer compartment, can be opened on both sides
 Soft-close kitchen drawers with cutlery compartment
 Soft-close hinges on wall units with pushlock
Stove + sink cover for extended work surface
Thetford toilet with removable cassette
Roof hatch and side window in the bathroom
Truma Combi C4 Gas with air vents in the living area, cab, garage and bathroom
Combi gas heater, with heat distribution throughout the motorhome, including garage and driver's cab
Truma CP+ Digital heating control panel with time control
Fresh water tank inside, easily accessible with electric submersible pump
Drain pipes with siphon and waste water tank with external ventilation, against odor formation
Adjustable reading lamps with USB sockets
Battery charger 22 A
FI (main fuse box) easily accessible
Easily accessible gas shut-off valves
(S) = fitted as standard
(O) = optionally bookable
(P) = as a package
Highlights
Van 630 - the compact all-rounder
The Campervan 630 combines suitability for everyday use with sophisticated travel comfort. Thanks to its aerodynamic design with improved Cd value, compact dimensions and standard smart home system from Revotion, it is a real highlight both technically and practically. Folding rear beds, ergonomic mattresses, Dometic refrigerator with double-sided door opening and soft-close furniture make it the ideal companion for adventures with high standards - whether it's a spontaneous weekend away or a longer tour
